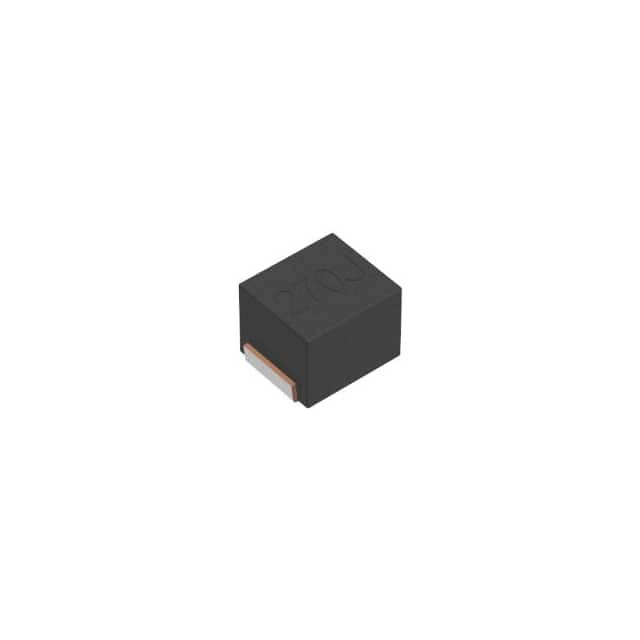

NLV25T-R39J-PFD

SKU: 148190

Manufacturer: TDK

Inductor General Purpose Chip Molded/Unshielded Wirewound 0.39uH 5% 25.2MHz 30Q-Factor Ferrite 0.375A 0.65Ohm DCR 1008 Automotive T/R

3900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	NRND
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Type	General Purpose Chip
Technology	Wirewound
Protection Style	Molded/Unshielded
Core Body Material	Ferrite
Inductance (H)	0.39u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	5%
Inductance Test Frequency (Hz)	25.2M
Maximum DC Current (A)	0.375
Maximum DC Resistance (Ohm)	0.65
Minimum Quality Factor	30
Quality Test Frequency (Hz)	25.2M
Minimum Self Resonant Frequency (Hz)	375M
Number of Terminals	2
Case Size	1008
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	2.7
Terminal Form	Surface Mount
Depth (mm)	2.1
