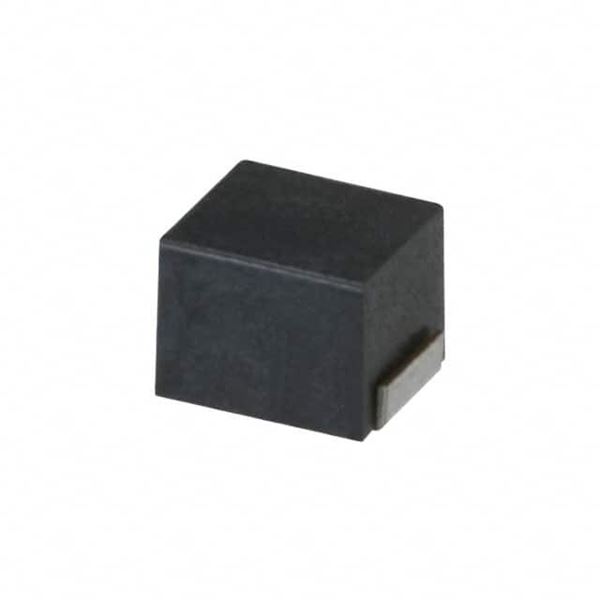

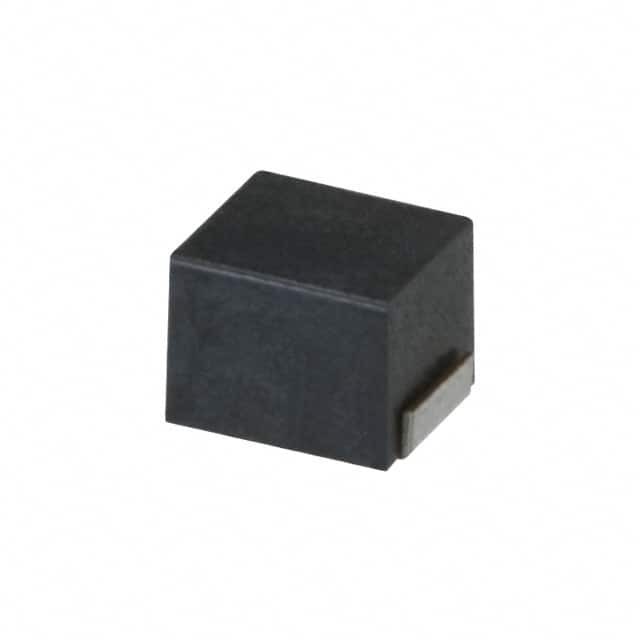

NLV25T-470J-EFD

SKU: 16673

Manufacturer: TDK

Inductor General Purpose Chip Molded/Unshielded Wirewound 47uH 5% 2.52MHz 20Q-Factor Ferrite 0.08A 11.1Ohm DCR 1008 Automotive T/R

4450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	Yes
PPAP	Unknown
Type	General Purpose Chip
Technology	Wirewound
Protection Style	Molded/Unshielded
Core Body Material	Ferrite
Inductance (H)	47u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	5%
Inductance Test Frequency (Hz)	2.52M
Maximum DC Current (A)	0.08
Maximum Saturation Current (A)	0.08
Maximum DC Resistance (Ohm)	11.1
Minimum Quality Factor	20
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	17M
Number of Terminals	2
Case Size	1008
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	2.7
Terminal Form	Surface Mount
Depth (mm)	2.1
