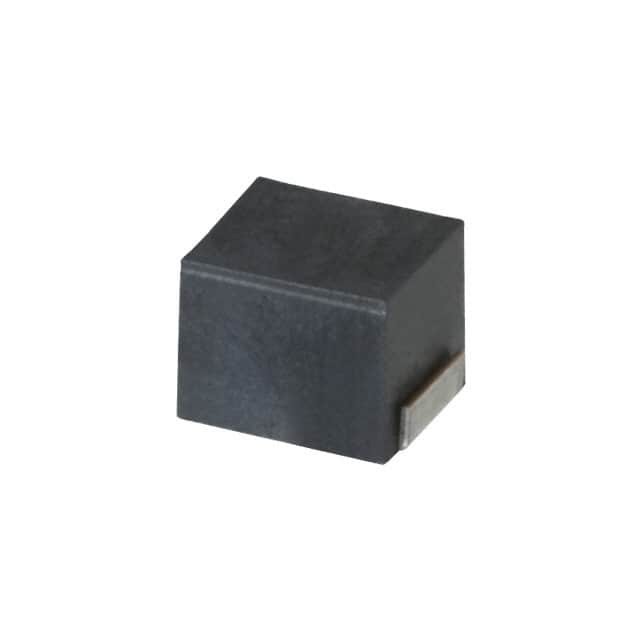

NLFV25T-1R0M-EF

SKU: 108494

Manufacturer: TDK

Inductor Power Shielded/Molded Wirewound 1uH 20% 7.96MHz 5Q-Factor Ferrite 0.455A 0.08Ohm DCR 1008 T/R

1050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded/Molded
Core Body Material	Ferrite
Inductance (H)	1u
Tolerance	20%
Inductance Test Frequency (Hz)	7.96M
Maximum DC Current (A)	0.455
Maximum Saturation Current (A)	0.455
Maximum DC Resistance (Ohm)	0.08
Minimum Quality Factor	5(Typ)
Quality Test Frequency (Hz)	7.96M
Minimum Self Resonant Frequency (Hz)	100M
Number of Terminals	2
Case Size	1008
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	2.7
Terminal Form	Surface Mount
Depth (mm)	2.1
