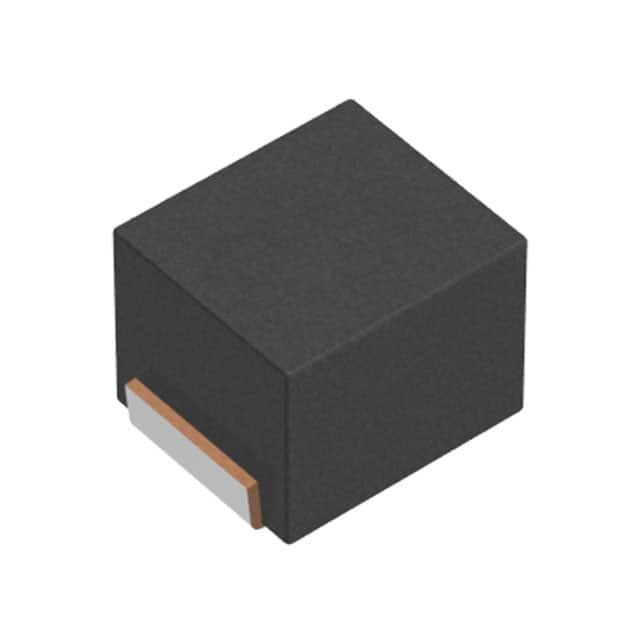

NLCV25T-6R8M-EFRD

SKU: 148187

Manufacturer: TDK

Inductor Power Molded/Unshielded Wirewound 6.8uH 20% 7.96MHz 10Q-Factor Ferrite 0.39A 1.104Ohm DCR 1008 Automotive T/R

3740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Molded/Unshielded
Core Body Material	Ferrite
Inductance (H)	6.8u
Tolerance	20%
Inductance Test Frequency (Hz)	7.96M
Maximum DC Current (A)	0.39
Maximum Saturation Current (A)	0.39
Maximum DC Resistance (Ohm)	1.104
Minimum Quality Factor	10(Typ)
Quality Test Frequency (Hz)	7.96M
Minimum Self Resonant Frequency (Hz)	38M
Number of Terminals	2
Case Size	1008
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	2.7
Terminal Form	Surface Mount
Depth (mm)	2.1
