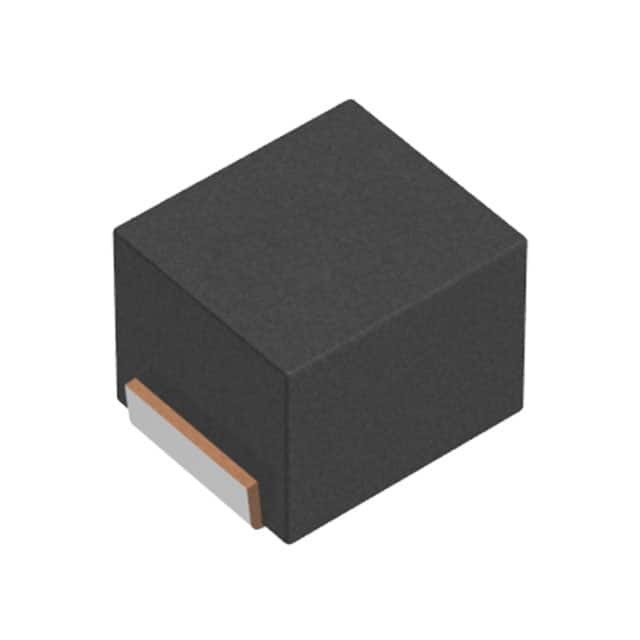

NLCV25T-100K-PFRD

SKU: 59271

Manufacturer: TDK

Inductor Power Molded/Unshielded Wirewound 10uH 10% 2.52MHz 15Q-Factor Ferrite 0.36A 1.32Ohm DCR 1008 Automotive T/R

3620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	NRND
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Molded/Unshielded
Core Body Material	Ferrite
Inductance (H)	10u
Tolerance	10%
Inductance Test Frequency (Hz)	2.52M
Maximum DC Current (A)	0.36
Maximum Saturation Current (A)	0.36
Maximum DC Resistance (Ohm)	1.32
Minimum Quality Factor	15(Typ)
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	30M
Number of Terminals	2
Case Size	1008
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	2.7
Terminal Form	Surface Mount
Depth (mm)	2.1
