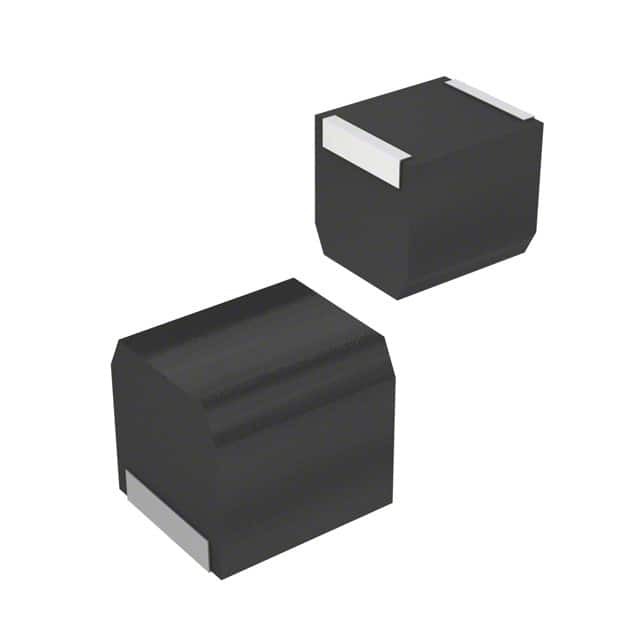

NLC565050T-102K

SKU: 126861

Manufacturer: TDK

Inductor General Purpose Chip Molded/Unshielded Wirewound 1000uH 10% 252KHz 20Q-Factor Ferrite 0.085A 15Ohm DCR 2220 T/R

540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	General Purpose Chip
Technology	Wirewound
Protection Style	Molded/Unshielded
Core Body Material	Ferrite
Inductance (H)	1000u
Tolerance	10%
Inductance Test Frequency (Hz)	252K
Maximum DC Current (A)	0.085
Maximum Saturation Current (A)	0.085
Maximum DC Resistance (Ohm)	15
Minimum Quality Factor	20
Quality Test Frequency (Hz)	252K
Minimum Self Resonant Frequency (Hz)	1.8M
Number of Terminals	2
Case Size	2220
Operating Temperature-Min	-20
Operating Temperature-Max	85
Packing Method	Tape and Reel
Length (mm)	5.9
Terminal Form	Surface Mount
Depth (mm)	5.3
