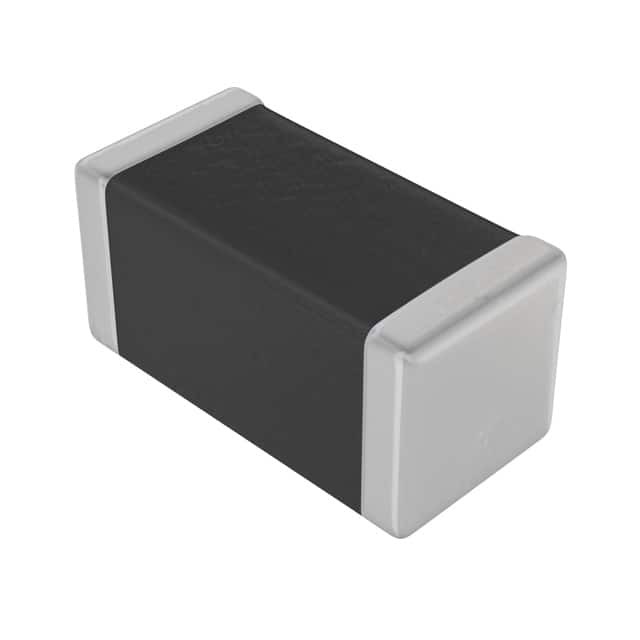

MLZ1005MR47WT000

SKU: 63196

Manufacturer: TDK

Inductor Power Shielded Multi-Layer 0.47uH 20% 2MHz Ferrite 0.5A 0.26Ohm DCR 0402 T/R

2400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Multi-Layer
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	0.47u
Tolerance	20%
Inductance Test Frequency (Hz)	2M
Maximum DC Current (A)	0.5
Maximum Saturation Current (A)	0.12
Maximum DC Resistance (Ohm)	0.26
Minimum Self Resonant Frequency (Hz)	260M(Typ)
Number of Terminals	2
Case Size	0402
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	1.05
Terminal Form	Surface Mount
Depth (mm)	0.55
