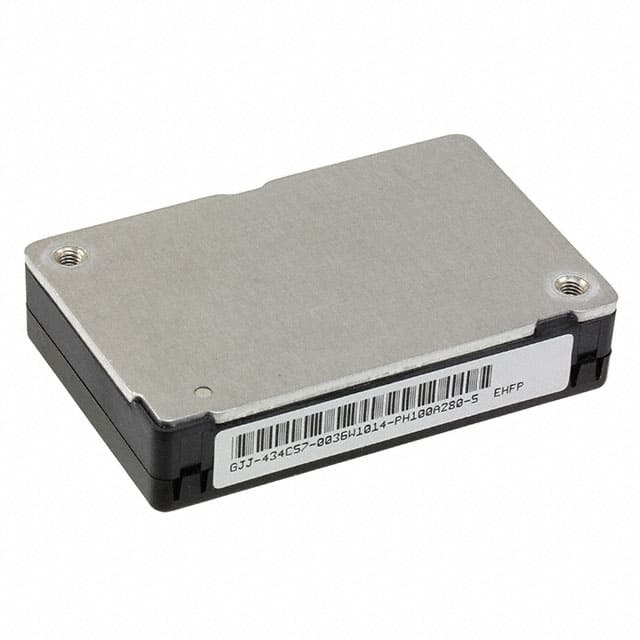

PH75A280-48 TDK-Lambda

PH75A280-48

SKU: 16712

Manufacturer: TDK-Lambda

Module DC-DC 280VIN 1-OUT 48V 1.6A 76.8W 8-Pin Quarter-Brick

Download sample

Request Free Samples

1470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	1
Isolation	Isolated
Minimum Input Voltage (V)	200
Typical Input Voltage (V)	280
Maximum Input Voltage (V)	425
Output Voltage (V)	48
Output Current (A)	1.6
Output Power (W)	76.8
Minimum Isolation Voltage	3000VAC
Input/Output Type	DC/DC
Switching Regulator	No
Load Regulation	96mV
Line Regulation	96mV
Efficiency (%)	90
On/Off Logic	Negative
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	55
Output Type	Fixed
Original Package	Quarter-Brick
Pin Count	8
Standard Package Method	Brick
Terminal Form	Through Hole
Package Height	12.7
Package Length	58.3
Package Width	37.2
