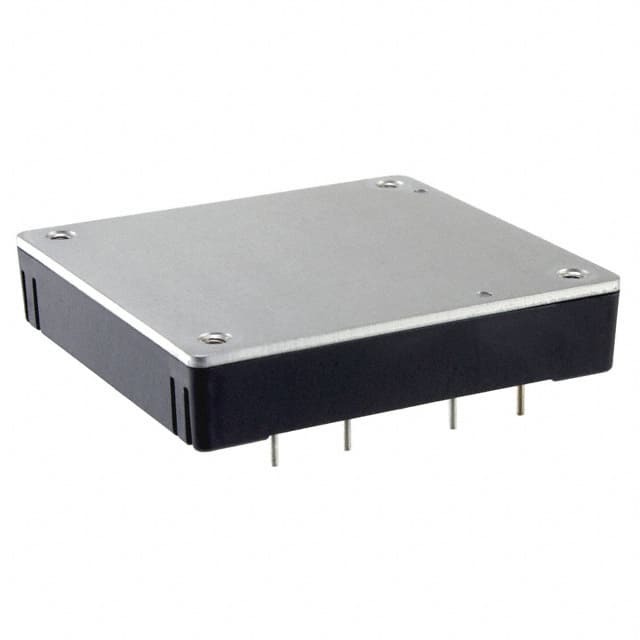

PAH-100S-48-3.3/V TDK-Lambda

PAH-100S-48-3.3/V

SKU: 108519

Manufacturer: TDK-Lambda

Module DC-DC 48VIN 1-OUT 3.3V 23.4A 77.2W 9-Pin Half-Brick

Download sample

Request Free Samples

790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Step Down
Isolation	Isolated
Number of Outputs	1
Minimum Input Voltage (V)	36
Typical Input Voltage (V)	48
Maximum Input Voltage (V)	76
Output Voltage (V)	3.3
Output Current (A)	23.4
Output Power (W)	77.2
Input/Output Type	DC/DC
Switching Regulator	No
On/Off Logic	Negative
Operating Temperature-Min	-40
Operating Temperature-Max	100
Output Type	Fixed
Original Package	Half-Brick
Pin Count	9
Standard Package Method	Brick
Terminal Form	Through Hole
Package Height	12.7
Package Length	61
Package Width	57.9
PCB changed	9
