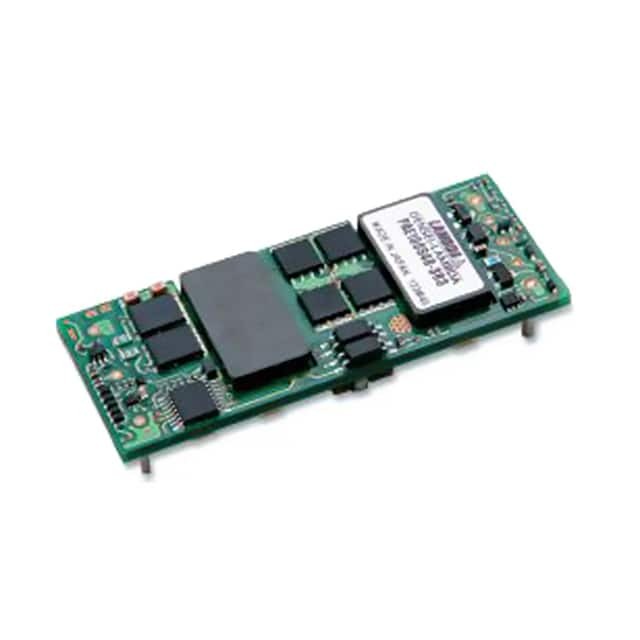

PAE50S48-3R3/V TDK-Lambda

PAE50S48-3R3/V

SKU: 105747

Manufacturer: TDK-Lambda

Module DC-DC 48VIN 1-OUT 3.3V 16A 52.8W 8-Pin 1/8-Brick

Download sample

Request Free Samples

4170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8504.40.95.10
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	1
Isolation	Isolated
Minimum Input Voltage (V)	36
Typical Input Voltage (V)	48
Maximum Input Voltage (V)	76
Output Voltage (V)	3.3
Output Current (A)	16
Output Power (W)	52.8
Minimum Isolation Voltage	1500VDC
Input/Output Type	DC/DC
Switching Regulator	No
Load Regulation	10mV
Line Regulation	10mV
Efficiency (%)	90
On/Off Logic	Negative
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	25
Output Type	Fixed
Original Package	1/8-Brick
Pin Count	8
Standard Package Method	Brick
Terminal Form	Through Hole
Package Height	8.5(Max)
Package Length	57.9
Package Width	22.7
PCB changed	8
