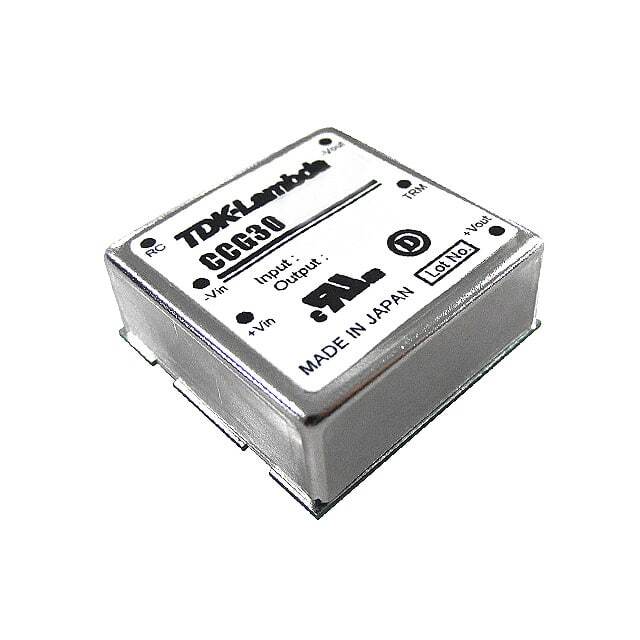

CCG30-48-05S TDK-Lambda

CCG30-48-05S

SKU: 124365

Manufacturer: TDK-Lambda

Module DC-DC 48VIN 1-OUT 5V 6A 30W 6-Pin

Request Free Samples

1590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8504.40.95.80
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	1
Isolation	Isolated
Minimum Input Voltage (V)	18
Typical Input Voltage (V)	48
Maximum Input Voltage (V)	76
Output Voltage (V)	5
Output Current (A)	6
Output Power (W)	30
Minimum Isolation Voltage	1500VDC
Input/Output Type	DC/DC
Switching Regulator	No
Load Regulation	20mV
Line Regulation	20mV
Efficiency (%)	90
On/Off Logic	Negative
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	20
Output Type	Fixed
Pin Count	6
Terminal Form	Through Hole
Package Height	9.9
Package Length	25.4
Package Width	25.4
