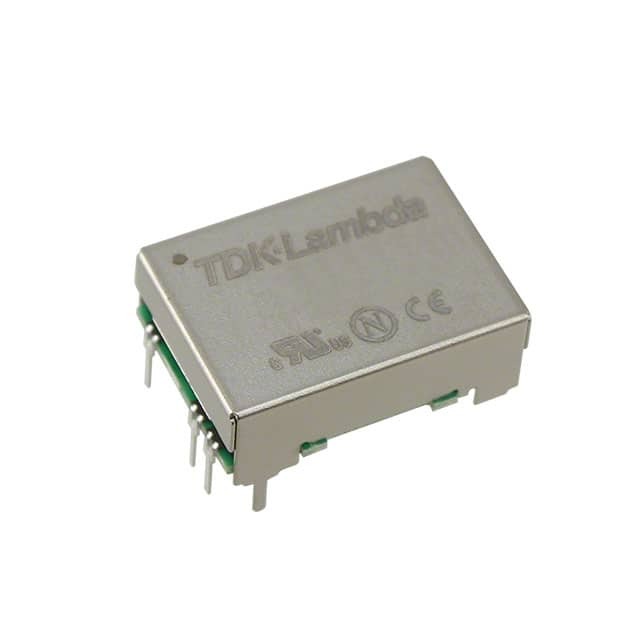

CC3-2405SF-E TDK-Lambda

CC3-2405SF-E

SKU: 131511

Manufacturer: TDK-Lambda

Module DC-DC 24VIN 1-OUT 5V 0.6A 3W 7-Pin PDIP

Download sample

Request Free Samples

1210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	1
Isolation	Isolated
Minimum Input Voltage (V)	18
Typical Input Voltage (V)	24
Maximum Input Voltage (V)	36
Output Voltage (V)	5
Output Current (A)	0.6
Output Power (W)	3
Minimum Isolation Voltage	500VAC
Input/Output Type	DC/DC
Switching Regulator	No
Load Regulation	40mV
Line Regulation	20mV
Efficiency (%)	78(Typ)
On/Off Logic	Negative
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	4.5
Output Type	Fixed
Original Package	PDIP
Pin Count	7
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	8.51
Package Length	22.86
Package Width	16.61
PCB changed	7
