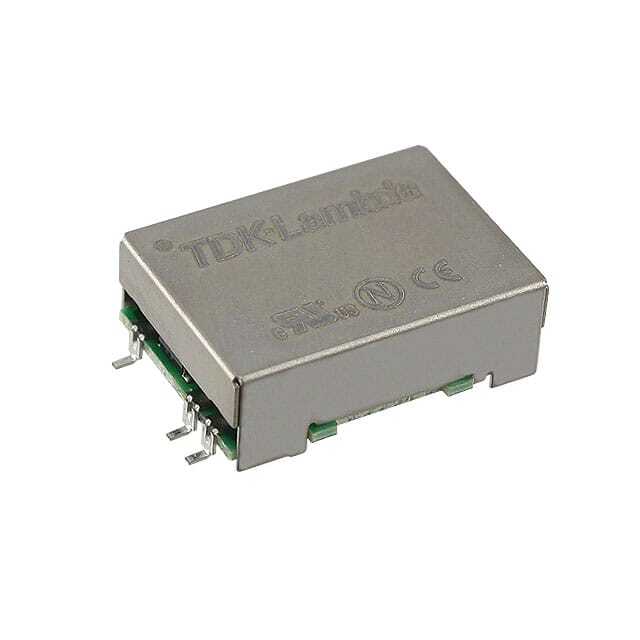

CC3-1205SR-E TDK-Lambda

CC3-1205SR-E

SKU: 53825

Manufacturer: TDK-Lambda

Module DC-DC 12VIN 1-OUT 5V 0.6A 3W 7-Pin PDIP SMD

Download sample

Request Free Samples

1370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8504.40.95.10
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	1
Isolation	Isolated
Minimum Input Voltage (V)	9
Typical Input Voltage (V)	12
Maximum Input Voltage (V)	18
Output Voltage (V)	5
Output Current (A)	0.6
Output Power (W)	3
Minimum Isolation Voltage	500VAC
Input/Output Type	DC/DC
Switching Regulator	No
Load Regulation	40mV
Line Regulation	20mV
Efficiency (%)	79(Typ)
On/Off Logic	Negative
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	4.5
Output Type	Fixed
Original Package	PDIP SMD
Pin Count	7
Standard Package Method	DIP
Terminal Form	Surface Mount
Package Length	22.6
Package Width	35.56
PCB changed	7
