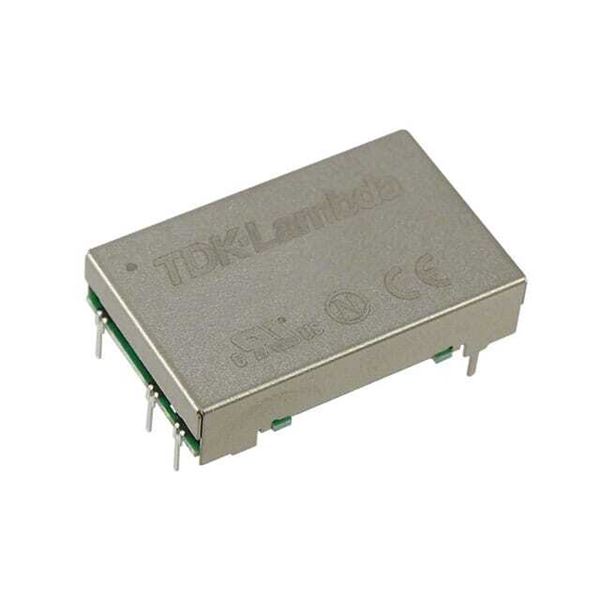

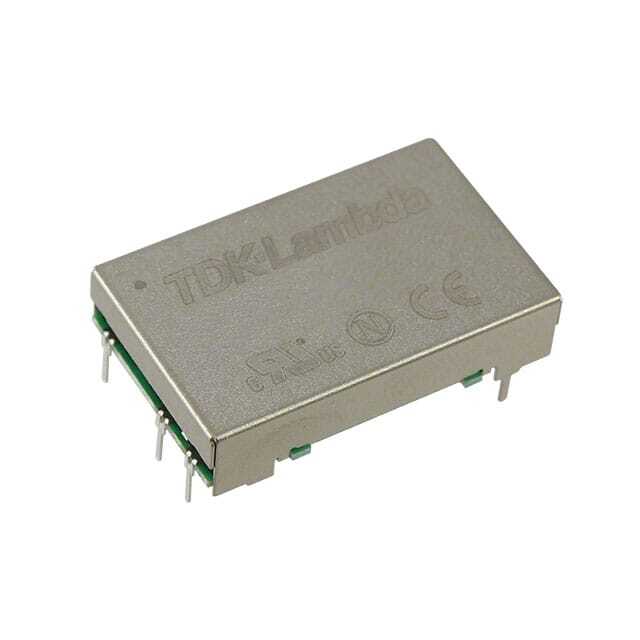

CC10-4812DF-E TDK-Lambda

CC10-4812DF-E

SKU: 25315

Manufacturer: TDK-Lambda

Module DC-DC 48VIN 2-OUT 12V/-12V 0.45A 10W 7-Pin DIP Module

Download sample

Request Free Samples

1160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Non-Inverting
Number of Outputs	2
Isolation	Isolated
Minimum Input Voltage (V)	36
Typical Input Voltage (V)	48
Maximum Input Voltage (V)	76
Output Voltage (V)	12
Output Current (A)	0.45
Output Power (W)	10
Minimum Isolation Voltage	500VAC
Input/Output Type	DC/DC
Switching Regulator	No
Load Regulation	600mV
Line Regulation	80mV
Efficiency (%)	86(Typ)
On/Off Logic	Negative
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	10
Output Type	Fixed
Original Package	DIP Module
Pin Count	7
Standard Package Method	DIM
Terminal Form	Through Hole
Package Height	8.5(Max)
Package Length	35.56
Package Width	22.6
PCB changed	7
