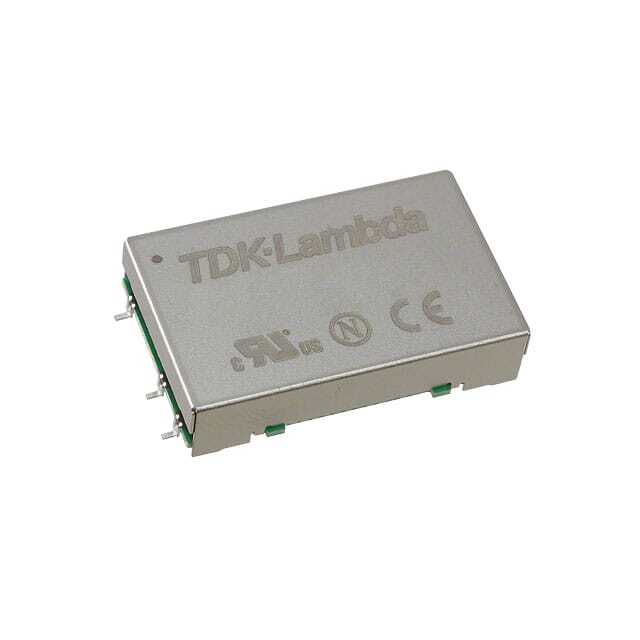

CC10-2405SR-E TDK-Lambda

CC10-2405SR-E

SKU: 145598

Manufacturer: TDK-Lambda

Module DC-DC 24VIN 1-OUT 5V 2A 10W 7-Pin PDIP SMD

Download sample

Request Free Samples

3820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	1
Isolation	Isolated
Minimum Input Voltage (V)	18
Typical Input Voltage (V)	24
Maximum Input Voltage (V)	36
Output Voltage (V)	5
Output Current (A)	2
Output Power (W)	10
Minimum Isolation Voltage	500VAC
Input/Output Type	DC/DC
Switching Regulator	No
Load Regulation	40mV
Line Regulation	20mV
Efficiency (%)	86(Typ)
On/Off Logic	Negative
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	10
Output Type	Fixed
Original Package	PDIP SMD
Pin Count	7
Standard Package Method	DIP
Terminal Form	Surface Mount
Package Height	8.51
Package Length	35.56
Package Width	22.61
PCB changed	7
