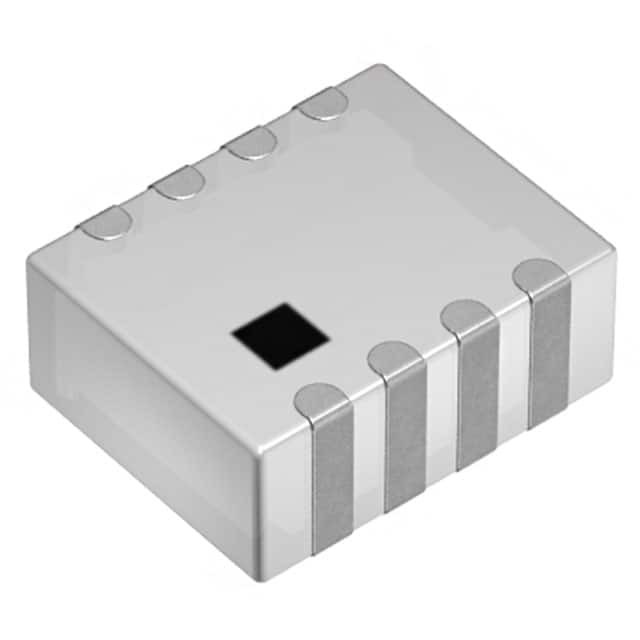

DPX252690DT-5042B2

SKU: 25651

Manufacturer: TDK

RF Diplexer Single 699MHz to 960MHz/1427MHz to 2690MHz 8-Pin T/R

1560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Diplexer
Number of Element per Chip	1
Frequency Band (MHz)	699 to 960
Maximum Low Band Insertion Loss (dB)	0.65
Maximum High Band Insertion Loss (dB)	0.9
Minimum Low Band Attenuation (dB)	20
Minimum High Band Attenuation (dB)	8
Minimum Isolation (dB)	20
Impedance (Ohm)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	8
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.5
Package Width	2
