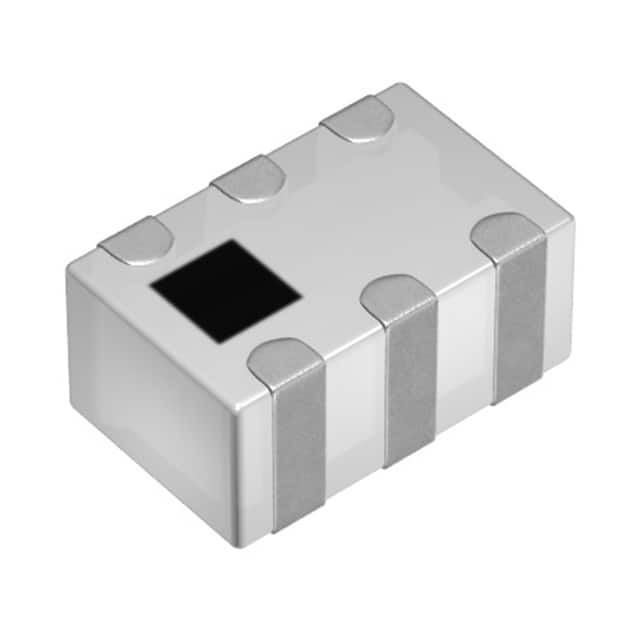

DPX205850DT-4055A1

SKU: 124685

Manufacturer: TDK

RF Diplexer 700MHz to 1990MHz/2400MHz to 5850MHz 6-Pin T/R

3340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8517.70.00.00
Automotive	No
PPAP	No
Type	Diplexer
Frequency Band (MHz)	700 to 1990
Minimum Low Band Return Loss (dB)	9.54
Minimum High Band Return Loss (dB)	9.54
Maximum Low Band Insertion Loss (dB)	1.2
Maximum High Band Insertion Loss (dB)	1
Minimum Low Band Attenuation (dB)	12
Minimum High Band Attenuation (dB)	12
Impedance (Ohm)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
