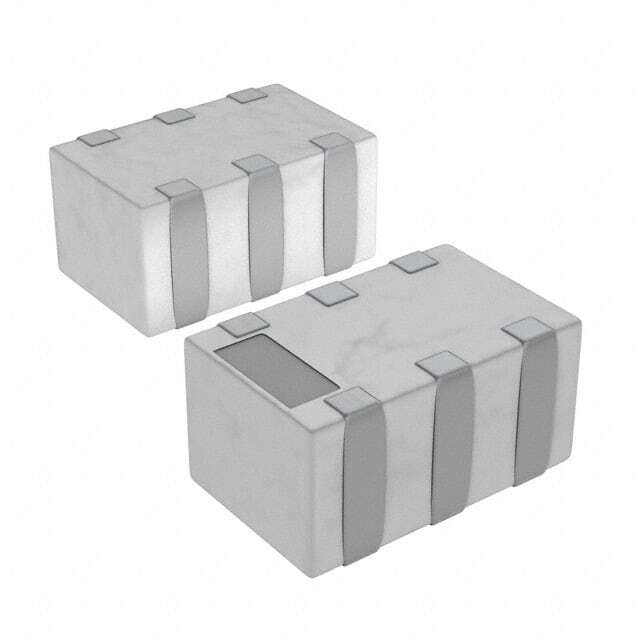

DPX202700DT-4035B5

SKU: 150623

Manufacturer: TDK

RF Diplexer Single 698MHz to 1616MHz/1920MHz to 2700MHz 6-Pin

2160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8548.90.01.00
Automotive	No
PPAP	No
Type	Diplexer
Number of Element per Chip	1
Frequency Band (MHz)	1920 to 2700
Minimum Low Band Return Loss (dB)	9.54
Minimum High Band Return Loss (dB)	9.54
Maximum Low Band Insertion Loss (dB)	1.3
Maximum High Band Insertion Loss (dB)	1.3
Minimum Low Band Attenuation (dB)	10
Minimum High Band Attenuation (dB)	10
Impedance (Ohm)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
