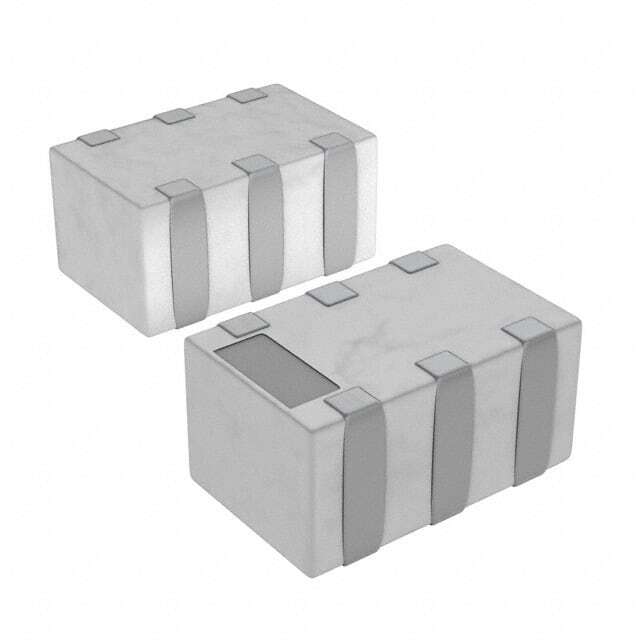

DPX202170DT-4149A1

SKU: 129329

Manufacturer: TDK

RF Diplexer Single 824MHz to 960MHz/1710MHz to 2170MHz 6-Pin T/R

2220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	No
PPAP	No
Type	Diplexer
Number of Element per Chip	1
Frequency Band (MHz)	824 to 960
Minimum Low Band Return Loss (dB)	13.98
Minimum High Band Return Loss (dB)	11.73
Maximum Low Band Insertion Loss (dB)	0.3
Maximum High Band Insertion Loss (dB)	0.5
Minimum Low Band Attenuation (dB)	15
Minimum High Band Attenuation (dB)	20
Impedance (Ohm)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
