DPX165950DT-8145A1

SKU: 117613

Manufacturer: TDK

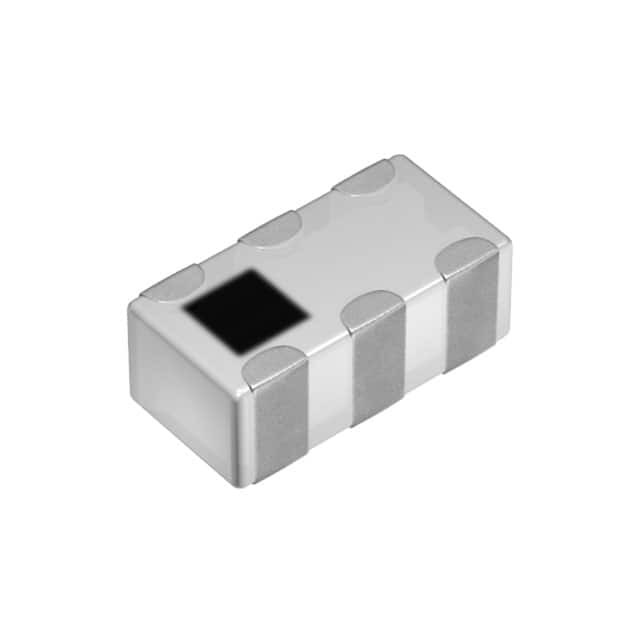

RF Diplexer 2400MHz to 2500MHz/4900MHz to 5950MHz 6-Pin Case 0603(1608Metric) Reel

4520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Diplexer
Frequency Band (MHz)	2400 to 2500/4900 to 5950
Minimum Low Band Return Loss (dB)	9.54
Minimum High Band Return Loss (dB)	9.54
Maximum Low Band Insertion Loss (dB)	0.55
Maximum High Band Insertion Loss (dB)	0.8
Minimum Low Band Attenuation (dB)	30
Minimum High Band Attenuation (dB)	11
Minimum Isolation (dB)	28
Impedance (Ohm)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Reel
Original Package	Case 0603(1608Metric)
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.6(Max)
Package Length	1.6
Package Width	0.8
