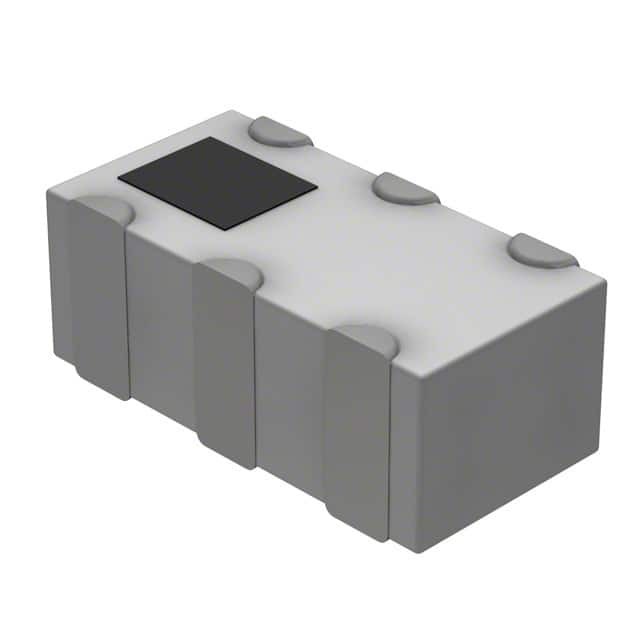

DPX165850DT-8033B1

SKU: 103408

Manufacturer: TDK

RF Diplexer 704MHz to 1610MHz/2400MHz to 5900MHz 6-Pin T/R

1620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

Part Status	NRND
Automotive	No
PPAP	No
Type	Diplexer
Frequency Band (MHz)	704 to 1610
Minimum Low Band Return Loss (dB)	10
Minimum High Band Return Loss (dB)	10
Maximum Low Band Insertion Loss (dB)	1.05
Maximum High Band Insertion Loss (dB)	1.05
Minimum Low Band Attenuation (dB)	13
Minimum High Band Attenuation (dB)	20
Impedance (Ohm)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.6
Package Length	1.6
Package Width	0.8
