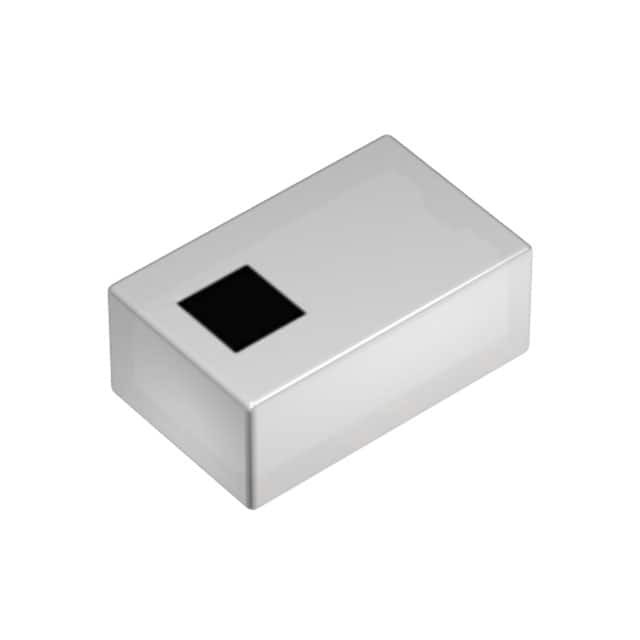

DEA203600BT-2224A1-H TDK

DEA203600BT-2224A1-H

SKU: 30271

Manufacturer: TDK

RF Filter Band Pass 3600MHz 3400MHz to 3800MHz 1.25dB 50Ohm SMD 6Pin 0805 Reel

Download sample

Request Free Samples

2150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	No
PPAP	No
Type	Band Pass
Center Frequency (MHz)	3600
Bandwidth (MHz)	3400 to 3800
Load Impedance	50Ohm
Maximum Insertion Loss (dB)	1.25
Minimum Return Loss (dB)	10
Terminal Form	Surface Mount
Number of Terminals	6
Case Size	0805
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Reel
Length (mm)	2
Depth (mm)	1.25
