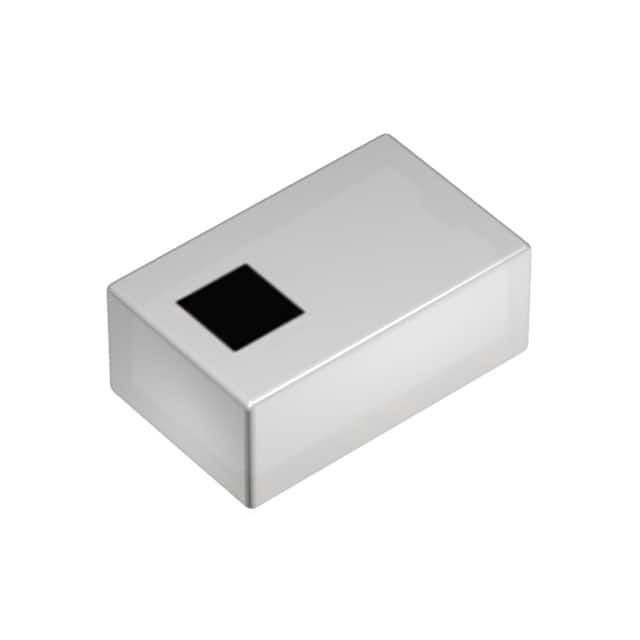

DEA202170LT-5071A1 TDK

DEA202170LT-5071A1

SKU: 32675

Manufacturer: TDK

RF Filter Low Pass 2170MHz 699MHz to 2170MHz 0.8dB 50Ohm SMD 3Pin 0805 Reel

Download sample

Request Free Samples

1850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	No
PPAP	No
Type	Low Pass
Center Frequency (MHz)	2170
Bandwidth (MHz)	699 to 2170
Load Impedance	50Ohm
Maximum Insertion Loss (dB)	0.8
Minimum Return Loss (dB)	9.54
Terminal Form	Surface Mount
Number of Terminals	3
Case Size	0805
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Reel
Length (mm)	2
Depth (mm)	1.25
