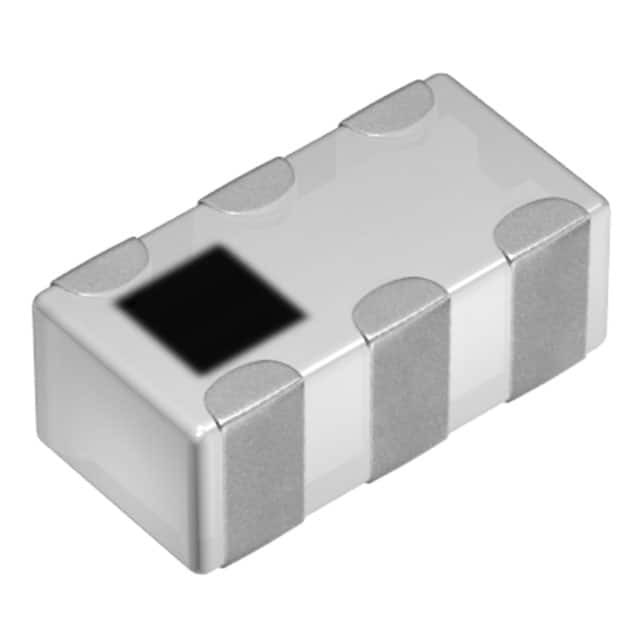

DEA163800LT-5017C1 TDK

DEA163800LT-5017C1

SKU: 54076

Manufacturer: TDK

RF Filter Low Pass 3800MHz 3300MHz to 3800MHz 0.6dB 50Ohm SMD 6Pin 0603 T/R

Download sample

Request Free Samples

1470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Low Pass
Center Frequency (MHz)	3800
Bandwidth (MHz)	3300 to 3800
Load Impedance	50Ohm
Maximum Insertion Loss (dB)	0.6
Minimum Return Loss (dB)	10
Terminal Form	Surface Mount
Number of Terminals	6
Case Size	0603
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Length (mm)	1.6
Depth (mm)	0.8
