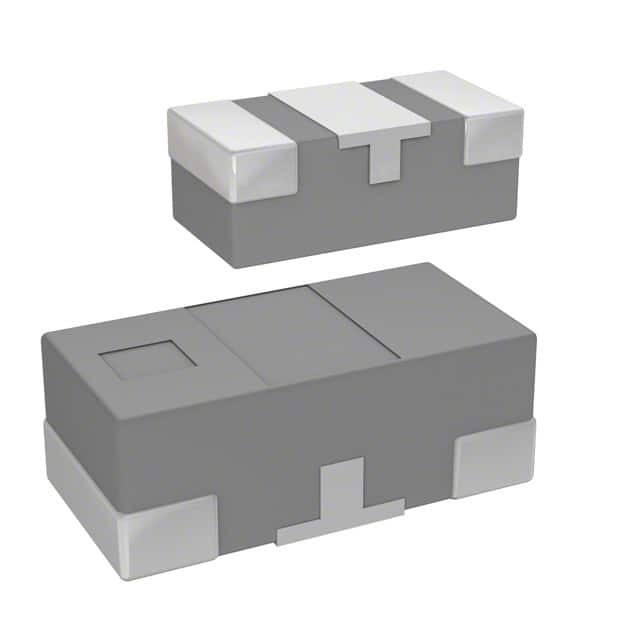

DEA162450BT-2181D1 TDK

DEA162450BT-2181D1

SKU: 16149

Manufacturer: TDK

RF Filter Band Pass 2450MHz 2400MHz to 2500MHz 2.2dB 50Ohm SMD 3Pin 0603

Download sample

Request Free Samples

2080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Band Pass
Center Frequency (MHz)	2450
Bandwidth (MHz)	2400 to 2500
Load Impedance	50Ohm
Maximum Insertion Loss (dB)	2.2
Minimum Return Loss (dB)	10
Terminal Form	Surface Mount
Number of Terminals	3
Case Size	0603
Operating Temperature-Min	-40
Operating Temperature-Max	85
Length (mm)	1.6
Depth (mm)	0.8
