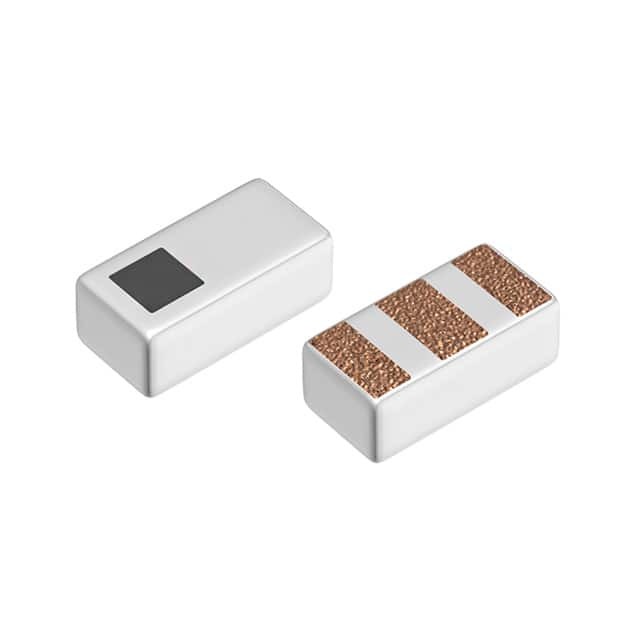

DEA162300HT-8047A1 TDK

DEA162300HT-8047A1

SKU: 58691

Manufacturer: TDK

RF Filter High Pass 2300MHz 2300MHz to 2400MHz 0.7dB 50Ohm SMD 3Pin 0603 T/R

Request Free Samples

3090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	High Pass
Center Frequency (MHz)	2300
Bandwidth (MHz)	2300 to 2400
Load Impedance	50Ohm
Maximum Insertion Loss (dB)	0.7
Maximum VSWR	2
Terminal Form	Surface Mount
Number of Terminals	3
Case Size	0603
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Length (mm)	1.6
Depth (mm)	0.8
