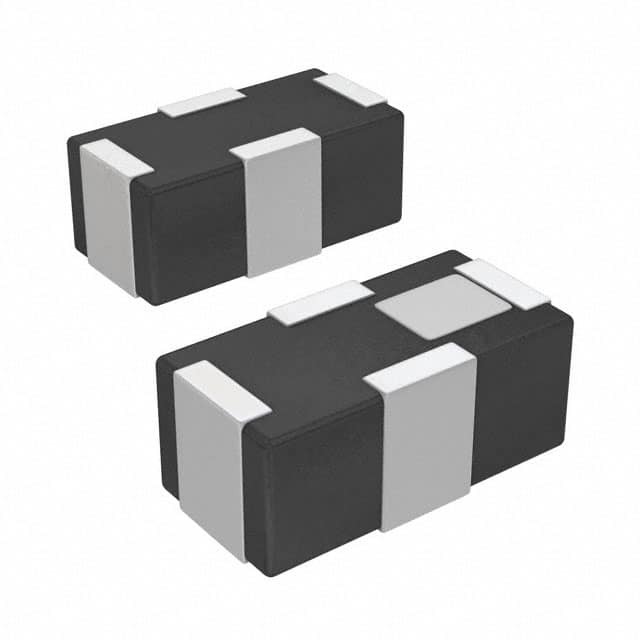

DEA105425BT-1293A1 TDK

DEA105425BT-1293A1

SKU: 72688

Manufacturer: TDK

RF Filter Band Pass 5425MHz 4900MHz to 5950MHz 1.2dB 50Ohm SMD 4Pin 0402

Download sample

Request Free Samples

4250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Band Pass
Center Frequency (MHz)	5425
Bandwidth (MHz)	4900 to 5950
Load Impedance	50Ohm
Maximum Insertion Loss (dB)	1.2
Minimum Return Loss (dB)	9.54
Terminal Form	Surface Mount
Number of Terminals	4
Case Size	0402
Operating Temperature-Min	-40
Operating Temperature-Max	85
Length (mm)	1
Depth (mm)	0.5
