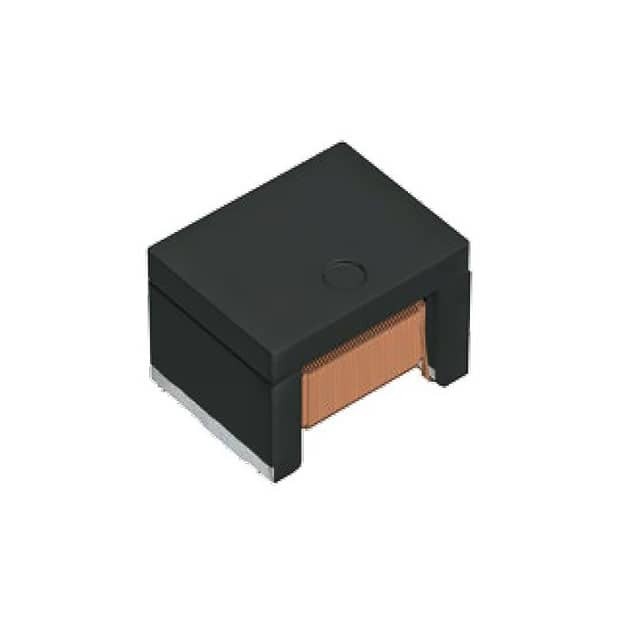

ADL3225V-470MT-TL000

SKU: 95342

Manufacturer: TDK

Inductor Power Shielded Wirewound 47uH 20% 100KHz Ferrite 0.5A 0.9Ohm DCR 1210 Automotive T/R

3570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	47u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	0.5(Typ)
Maximum Saturation Current (A)	0.3(Typ)
Maximum DC Resistance (Ohm)	0.9
Number of Terminals	2
Case Size	1210
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	3.4
Terminal Form	Surface Mount
Depth (mm)	2.7
