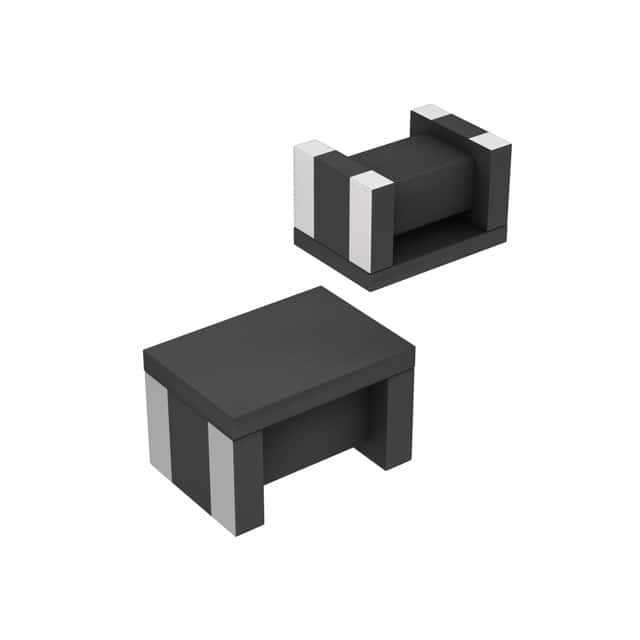

ACT45B-110-2P-TL003

SKU: 144798

Manufacturer: TDK

Common Mode Chokes Dual 11uH 600Ohm 100kHz 0.25A 0.6Ohm DCR SMD Automotive T/R

1800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Signal Line
Configuration	Dual
Number of Lines	2
Inductance (H)	11u
Leakage Inductance (H)	50n
Impedance (Ohm)	600@10MHz
Test Frequency (Hz)	100k
Maximum DC Current (A)	0.25
Maximum DC Resistance (Ohm)	0.6
Minimum Insulation Resistance (Ohm)	10M
Voltage Rating	50VDC
Terminal Form	Surface Mount
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	4.7
Depth (mm)	3.4
Height (mm)	3
Package Height	2.8
Package Length	4.5
