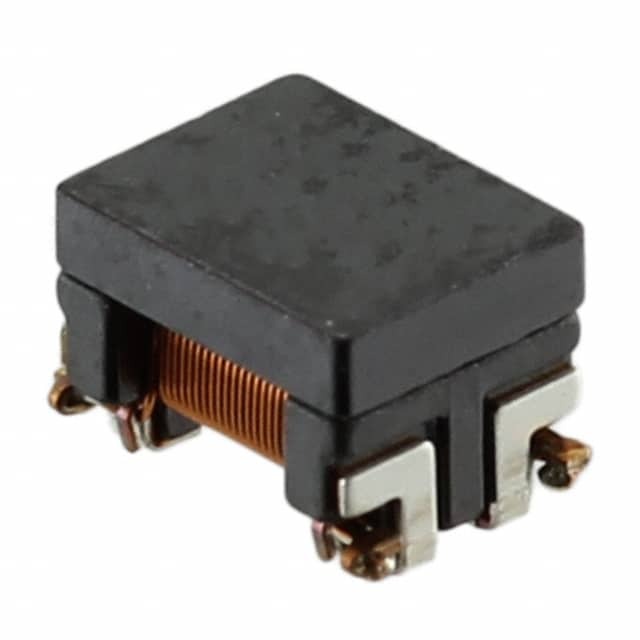

ACT1210L-201-2P-TL00

SKU: 67005

Manufacturer: TDK

Common Mode Chokes Dual 200uH 9.5kOhm 100kHz 0.07A 5.5Ohm DCR SMD Automotive T/R

3120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Signal Line
Configuration	Dual
Number of Lines	2
Inductance (H)	200u
Impedance (Ohm)	9.5k@10MHz
Test Frequency (Hz)	100k
Maximum DC Current (A)	0.07
Maximum DC Resistance (Ohm)	5.5
Minimum Insulation Resistance (Ohm)	10M
Voltage Rating	80V
Terminal Form	Surface Mount
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	3.9
Depth (mm)	2.7
