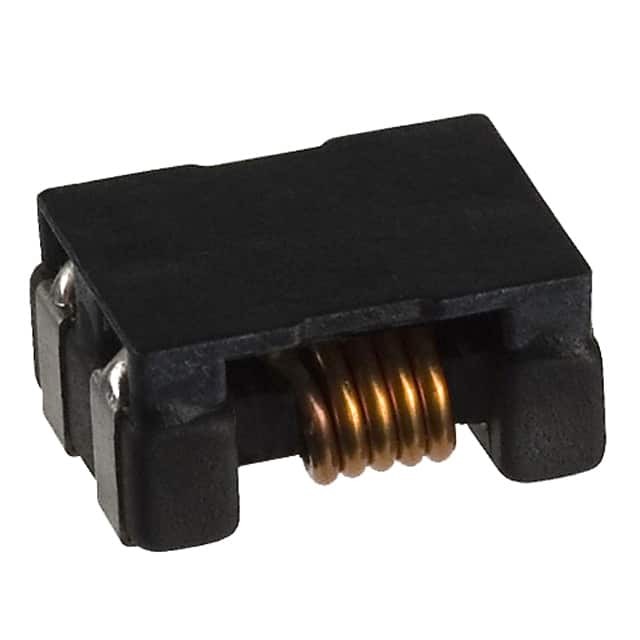

ACM70V-701-2PL-TL00

SKU: 95147

Manufacturer: TDK

Common Mode Chokes Dual 7.5uH 700Ohm 100MHz 4A 0.015Ohm DCR SMD Automotive T/R

25250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Power Line
Configuration	Dual
Number of Lines	2
Inductance (H)	7.5u
Impedance (Ohm)	700
Test Frequency (Hz)	100M
Maximum DC Current (A)	4
Maximum DC Resistance (Ohm)	0.015
Minimum Insulation Resistance (Ohm)	10M
Voltage Rating	80VDC
Terminal Form	Surface Mount
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	7.2
Depth (mm)	6.2
Height (mm)	3.5
Package Height	3.5
Package Length	7
