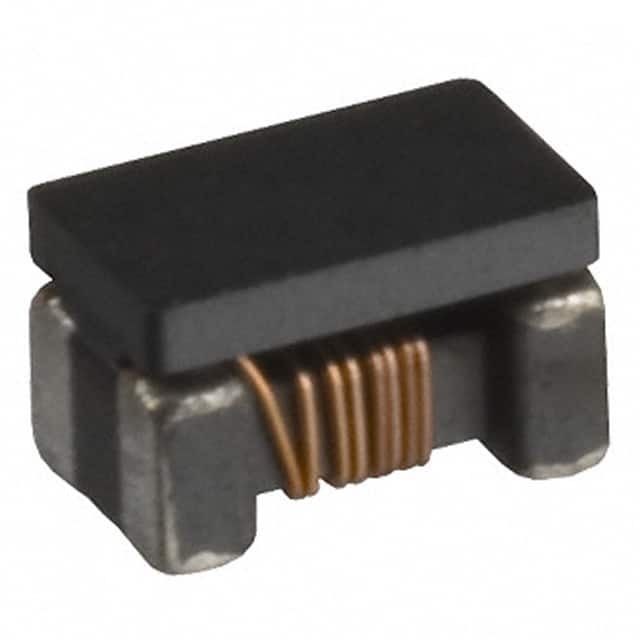

ACM2012H-900-2P-T05

SKU: 109273

Manufacturer: TDK

Common Mode Chokes Dual 0.41uH 90Ohm 100MHz 0.3A 0.3Ohm DCR SMD T/R

2180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Signal Line
Configuration	Dual
Number of Lines	2
Inductance (H)	0.41u
Impedance (Ohm)	90
Test Frequency (Hz)	100M
Maximum DC Current (A)	0.3
Maximum DC Resistance (Ohm)	0.3
Minimum Insulation Resistance (Ohm)	10M
Voltage Rating	20VDC
Terminal Form	Surface Mount
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	2.2
Depth (mm)	1.4
