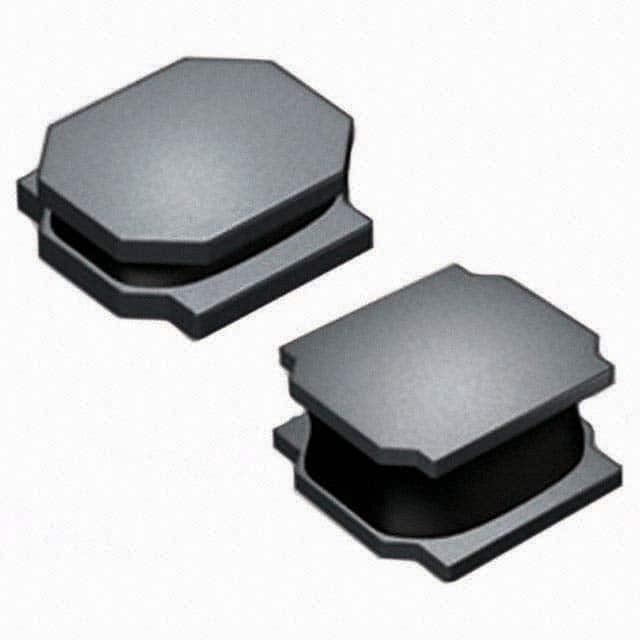

NRS4018T2R2MDGJ

SKU: 98521

Manufacturer: Taiyo Yuden

Inductor Power Shielded Wirewound 2.2uH 20% 100KHz Ferrite 2.2A 0.0504Ohm DCR 1515 T/R

40 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	2.2u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	2.2
Maximum Saturation Current (A)	3
Maximum DC Resistance (Ohm)	0.0504
Minimum Self Resonant Frequency (Hz)	60M
Number of Terminals	2
Case Size	1515
Operating Temperature-Min	-25
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	4.2
Depth (mm)	4.2
