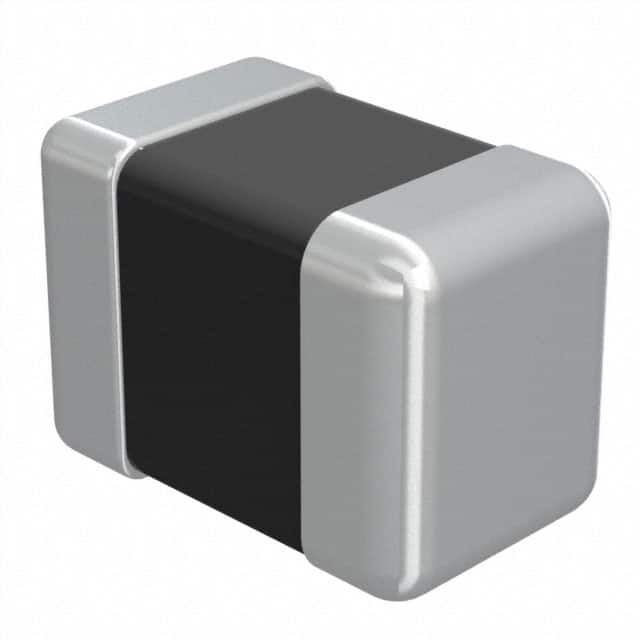

LBR2012T470K

SKU: 118256

Manufacturer: Taiyo Yuden

Inductor General Purpose Chip Wirewound 47uH 10% 2.52MHz Ferrite 0.075A 2.21Ohm DCR 0805 T/R

5120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	General Purpose Chip
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	47u
Inductance Decrease Percentage @ Isat (%)	20
Tolerance	10%
Inductance Test Frequency (Hz)	2.52M
Maximum DC Current (A)	0.075
Maximum Saturation Current (A)	0.075
Maximum DC Resistance (Ohm)	2.21
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	11M
Number of Terminals	2
Case Size	0805
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	2.2
Terminal Form	Surface Mount
Depth (mm)	1.45
