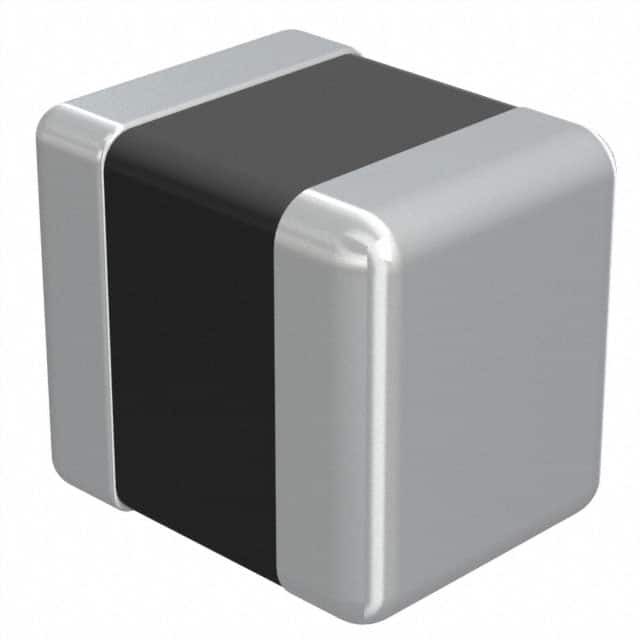

LBM2016T220J

SKU: 61788

Manufacturer: Taiyo Yuden

Inductor RF Wirewound 22uH 5% 2.52MHz 25Q-Factor Ferrite 0.14A 3.64Ohm DCR 0806 T/R

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	RF
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	22u
Tolerance	5%
Inductance Test Frequency (Hz)	2.52M
Maximum DC Current (A)	0.14
Maximum Saturation Current (A)	0.14
Maximum DC Resistance (Ohm)	3.64
Minimum Quality Factor	25
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	17M
Number of Terminals	2
Case Size	0806
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	2.2
Depth (mm)	1.8
