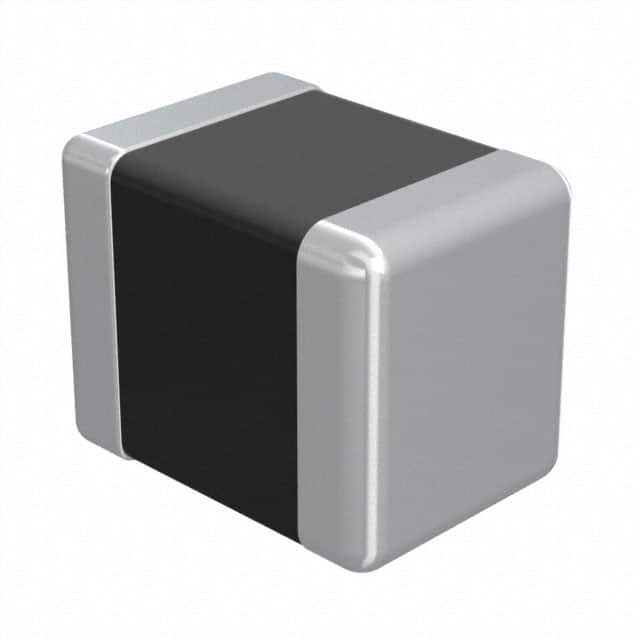

LB2518T150K

SKU: 96980

Manufacturer: Taiyo Yuden

Inductor General Purpose Chip Wirewound 15uH 10% 2.52MHz Ferrite 0.145A 0.416Ohm DCR 1007 T/R

3700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	General Purpose Chip
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	15u
Tolerance	10%
Inductance Test Frequency (Hz)	2.52M
Maximum DC Current (A)	0.145
Maximum Saturation Current (A)	0.145
Maximum DC Resistance (Ohm)	0.416
Minimum Self Resonant Frequency (Hz)	23M
Number of Terminals	2
Case Size	1007
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	2.7
Terminal Form	Surface Mount
Depth (mm)	2
