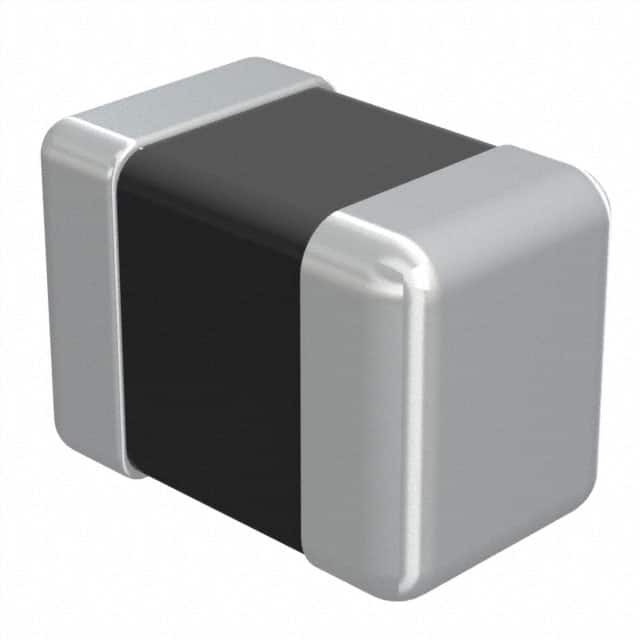

HK2125R15J-T

SKU: 125077

Manufacturer: Taiyo Yuden

Inductor High Frequency Chip Multi-Layer 0.15uH 5% 50MHz 13Q-Factor Ceramic 0.3A 1Ohm DCR 0805 T/R

1740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	High Frequency Chip
Technology	Multi-Layer
Core Body Material	Ceramic
Inductance (H)	0.15u
Tolerance	5%
Inductance Test Frequency (Hz)	50M
Maximum DC Current (A)	0.3
Maximum DC Resistance (Ohm)	1
Minimum Quality Factor	13
Quality Test Frequency (Hz)	50M
Minimum Self Resonant Frequency (Hz)	500M
Number of Terminals	2
Case Size	0805
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Length (mm)	2.3
Depth (mm)	1.45
