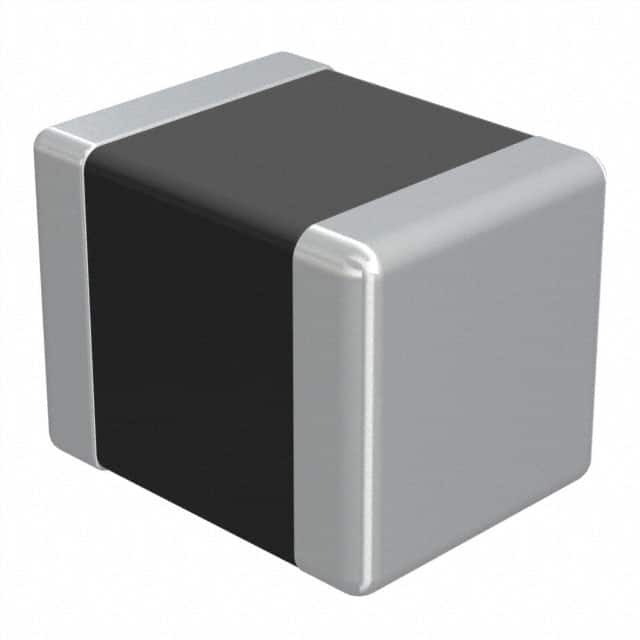

CBC3225T221KR

SKU: 152768

Manufacturer: Taiyo Yuden

Inductor Power Chip Wirewound 220uH 10% 100KHz Ferrite 0.19A 3.25Ohm DCR 1210 T/R

3100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power Chip
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	220u
Tolerance	10%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	0.19
Maximum Saturation Current (A)	0.19
Maximum DC Resistance (Ohm)	3.25
Minimum Self Resonant Frequency (Hz)	3M
Number of Terminals	2
Case Size	1210
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	3.4
Terminal Form	Surface Mount
Depth (mm)	2.7
