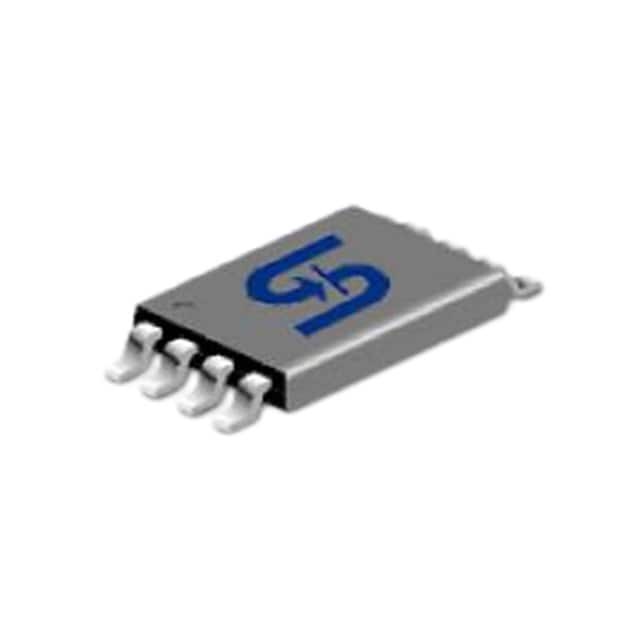

TSM6866SDCARV

SKU: 94769

Manufacturer: Taiwan Semiconductor

Trans MOSFET N-CH 20V 6A 8-Pin TSSOP T/R

2380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual Dual Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±12
Maximum Continuous Drain Current (A)	6
Maximum Drain Source Resistance (mOhm)	30@4.5V
Typical Gate Charge @ Vgs (nC)	5@4.5V
Typical Input Capacitance @ Vds (pF)	565@8V
Maximum Power Dissipation (mW)	1600
Typical Fall Time (ns)	6
Typical Rise Time (ns)	10
Typical Turn-Off Delay Time (ns)	22
Typical Turn-On Delay Time (ns)	8
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	TSSOP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	3.1(Max)
Package Width	4.5(Max)
PCB changed	8
