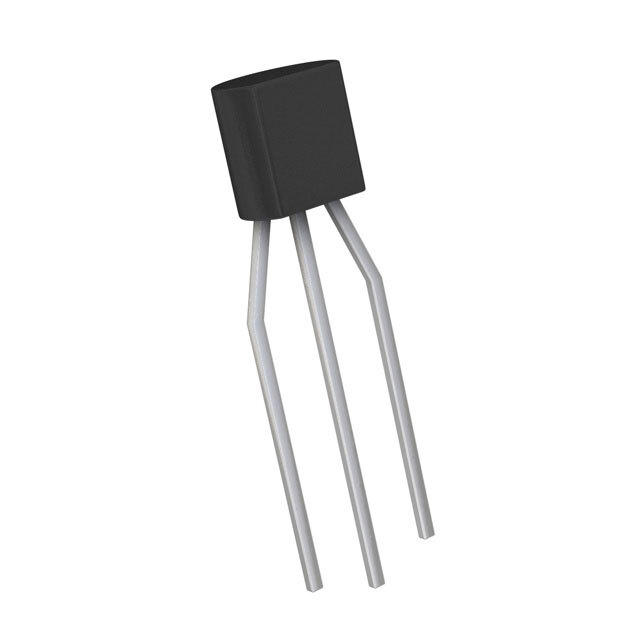

TSM2N7000KCTA3

SKU: 50810

Manufacturer: Taiwan Semiconductor

Trans MOSFET N-CH 60V 0.3A 3-Pin TO-92 Ammo

1420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2.5
Maximum Continuous Drain Current (A)	0.3
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	5000@10V
Typical Gate Charge @ Vgs (nC)	0.4@4.5V
Typical Input Capacitance @ Vds (pF)	7.32@25V
Maximum Power Dissipation (mW)	400
Typical Turn-Off Delay Time (ns)	35
Typical Turn-On Delay Time (ns)	25
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Ammo
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	4.7(Max)
Package Length	4.7(Max)
Package Width	3.7(Max)
PCB changed	3
