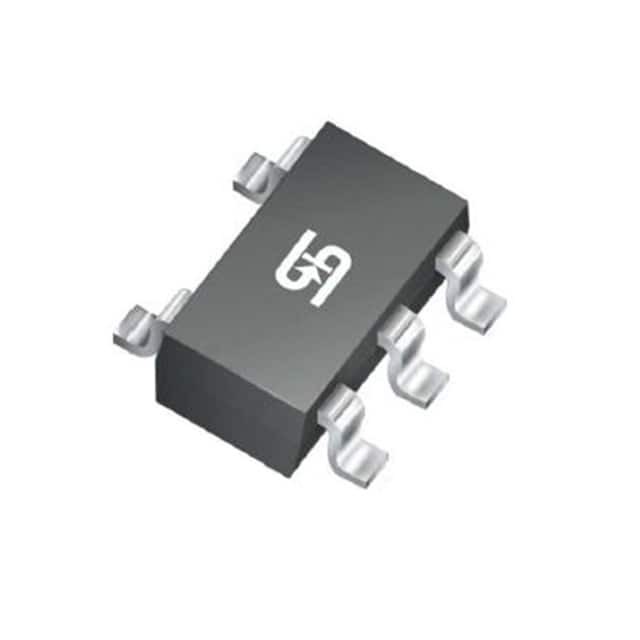

TS321CX5

SKU: 29458

Manufacturer: Taiwan Semiconductor

Op Amp Single Low Power Amplifier ±16V/32V 5-Pin SOT-25 T/R

2380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Low Power Amplifier
Manufacturer Type	Low Power Amplifier
Number of Channels per Chip	1
Maximum Input Offset Voltage (mV)	7@±5V
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	32
Minimum Dual Supply Voltage (V)	±1.5
Typical Dual Supply Voltage (V)	±12
Maximum Dual Supply Voltage (V)	±16
Maximum Input Offset Current (uA)	0.05@±5V
Typical Input Bias Current (uA)	0.045@±5V
Maximum Input Bias Current (uA)	0.25@±5V
Maximum Quiescent Current (mA)	1.15@5V
Typical Output Current (mA)	40@15V
Power Supply Type	Single
Typical Slew Rate (V/us)	0.14@15V
Typical Voltage Gain (dB)	100
Minimum PSRR (dB)	65
Minimum CMRR (dB)	65
Minimum CMRR Range (dB)	65 to 70
Typical Gain Bandwidth Product (MHz)	1
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-25
Pin Count	5
Terminal Form	Surface Mount
Package Length	3.1(Max)
Package Width	1.8(Max)
