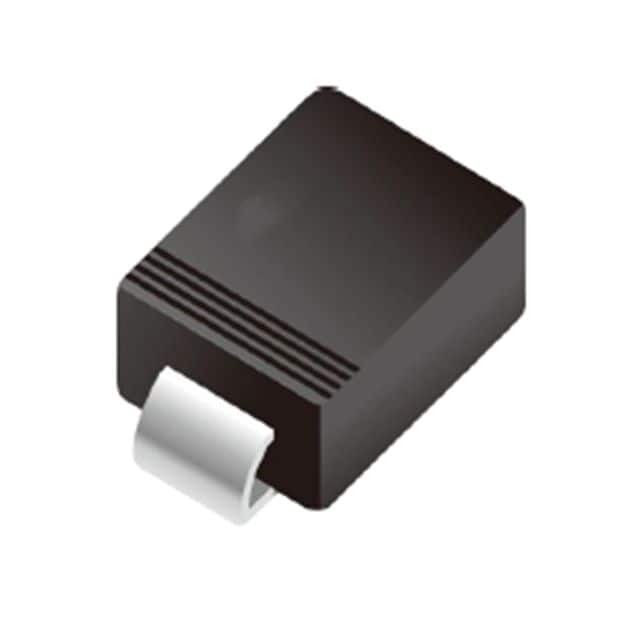

SMBJ150A

SKU: 14431

Manufacturer: Taiwan Semiconductor

TVS Diode Single Uni-Dir 150V 600W 2-Pin SMB T/R

41400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	167
Maximum Clamping Voltage (V)	243
Maximum Reverse Stand-Off Voltage (V)	150
Maximum Forward Voltage (V)	5
Peak Forward Surge Current (A)	100
Maximum Peak Pulse Current (A)	2.5
Maximum Reverse Leakage Current (uA)	5
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	600
Operating Temperature-Min	-65
Operating Temperature-Max	150
Maximum Power Dissipation (mW)	3000
Product Weight (g)	0.093
Packing Method	Tape and Reel
Original Package	SMB
Pin Count	2
Standard Package Method	DO-214-AA
Terminal Form	Surface Mount
Package Height	2.41(Max)
Package Length	4.75(Max)
Package Width	3.73(Max)
PCB changed	2
