MBRF30200CT

SKU: 55981

Manufacturer: Taiwan Semiconductor

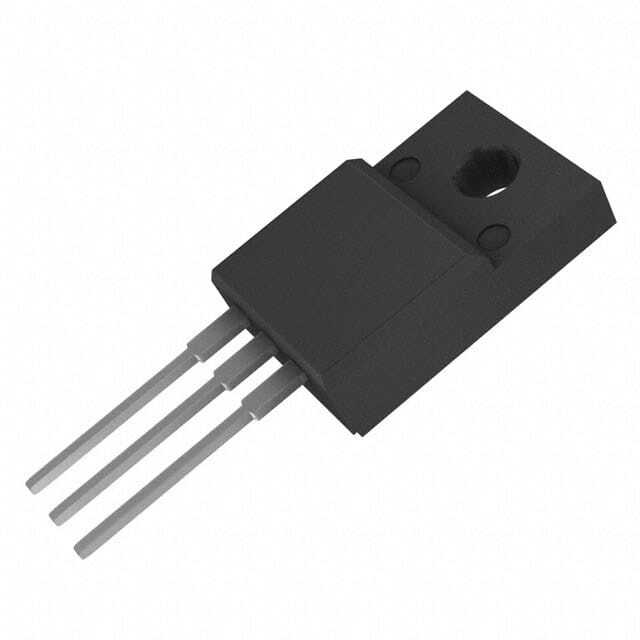

Rectifier Diode Schottky 200V 30A 3-Pin(3+Tab) ITO-220AB

90 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Schottky Diode
Maximum DC Reverse Voltage (V)	200
Configuration	Dual Common Cathode
Peak Reverse Repetitive Voltage (V)	200
Maximum Continuous Forward Current (A)	30
Peak Non-Repetitive Surge Current (A)	200
Peak Forward Voltage (V)	1.05
Peak Reverse Current (uA)	200
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	ITO-220AB
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	15.5(Max)
Package Length	10.3(Max)
Package Width	4.7(Max)
PCB changed	3
