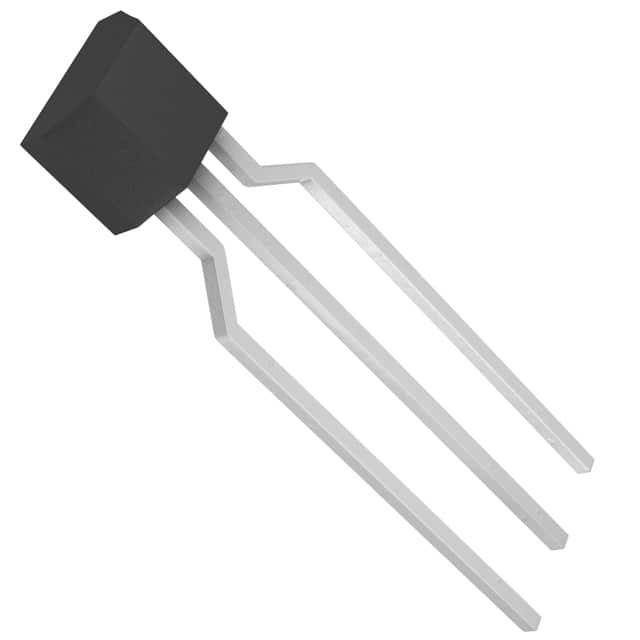

DTA143TSA

SKU: 108029

Manufacturer: Taiwan Semiconductor

Trans Digital BJT PNP 50V 100mA 3-Pin TO-92S T/R

2500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	PNP
Configuration	Single
Collector-Emitter Voltage-Max (V)	50
Maximum Continuous DC Collector Current (mA)	100
Minimum DC Current Gain	100@1mA@5V
Typical Current Gain Bandwidth (MHz)	250
Typical Input Resistor (kOhm)	4.7
Maximum Collector-Emitter Saturation Voltage (V)	0.3@0.25mA@5mA
Maximum Power Dissipation (mW)	300
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	TO-92S
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	3.31(Max)
Package Length	4.15(Max)
Package Width	1.62(Max)
PCB changed	3
