12A

SKU: 8146

Manufacturer: Switchcraft

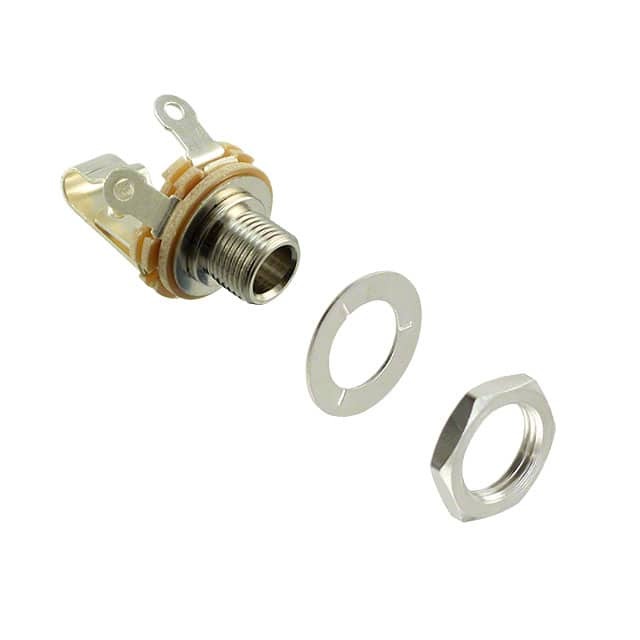

Conn 1/4" Phone Jack F 2 POS Solder ST Panel Mount 2 Terminal 1 Port

2540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.51
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	1/4" Phone Jack
Gender	F
Number of Contacts	2
Number of Terminals	2
Number of Ports	1
Termination Method	Solder
Body Orientation	Straight
Current Rating-Max(A)	1
Voltage Rating-Max	25VDC
Insulation Resistance (MOhm)	10000
Maximum Contact Resistance (mOhm)	50
Operating Temperature-Min	-20
Operating Temperature-Max	65
Length (mm)	32.41
Terminal Form	Panel Mount
