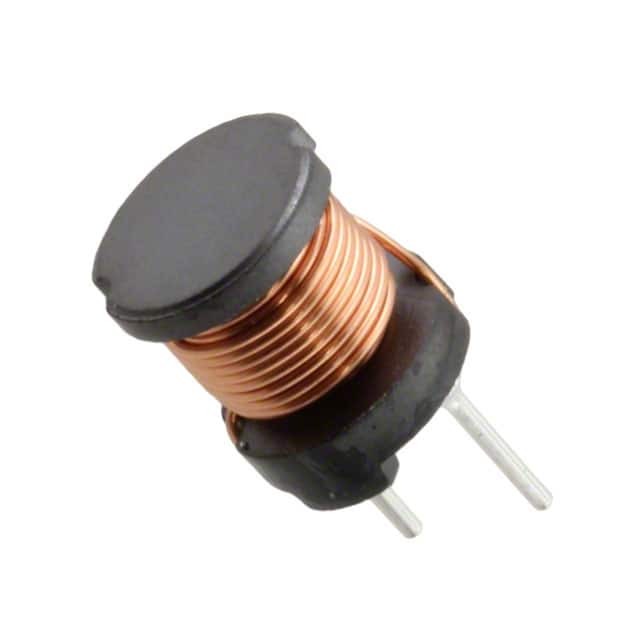

RCH895NP-101K

SKU: 21079

Manufacturer: Sumida

Inductor Power Unshielded Drum Core 100uH 10% 1KHz Ferrite 0.72A 0.19Ohm DCR RDL Box

2820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Drum Core
Protection Style	Unshielded
Core Body Material	Ferrite
Inductance (H)	100u
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	0.72
Maximum Saturation Current (A)	0.9
Maximum DC Resistance (Ohm)	0.19
Terminal Form	Through Hole
Lead Style	Radial
Terminal Pitch (mm)	5
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	100
Packing Method	Box
Product Diameter (mm)	8.3
