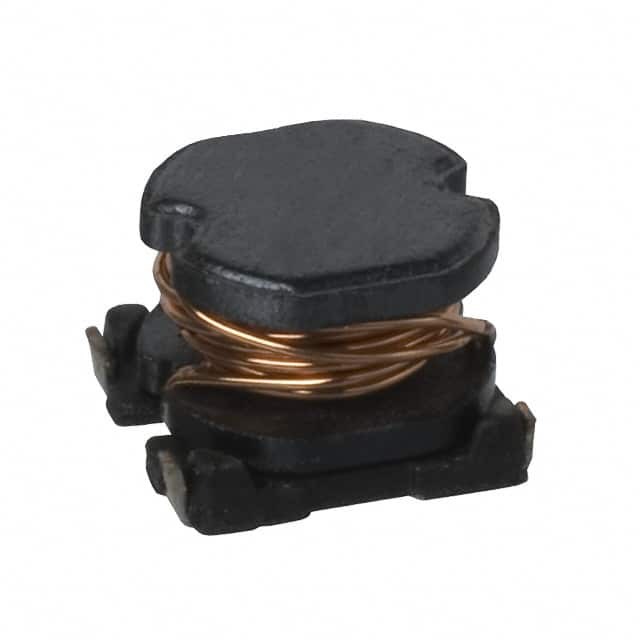

CR43NP-4R7MC

SKU: 67939

Manufacturer: Sumida

Inductor Power Unshielded Drum Core 4.7uH 20% 7.96MHz Ferrite 1.15A 0.1087Ohm DCR T/R

1260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
SVHC	Yes
Automotive	No
PPAP	No
Type	Power
Technology	Drum Core
Protection Style	Unshielded
Core Body Material	Ferrite
Inductance (H)	4.7u
Inductance Decrease Percentage @ Isat (%)	90
Tolerance	20%
Inductance Test Frequency (Hz)	7.96M
Maximum DC Current (A)	1.15
Maximum Saturation Current (A)	1.15
Maximum DC Resistance (Ohm)	0.1087
Minimum Self Resonant Frequency (Hz)	49.3M(Typ)
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	100
Packing Method	Tape and Reel
Length (mm)	4.8
Terminal Form	Surface Mount
Depth (mm)	4.3
