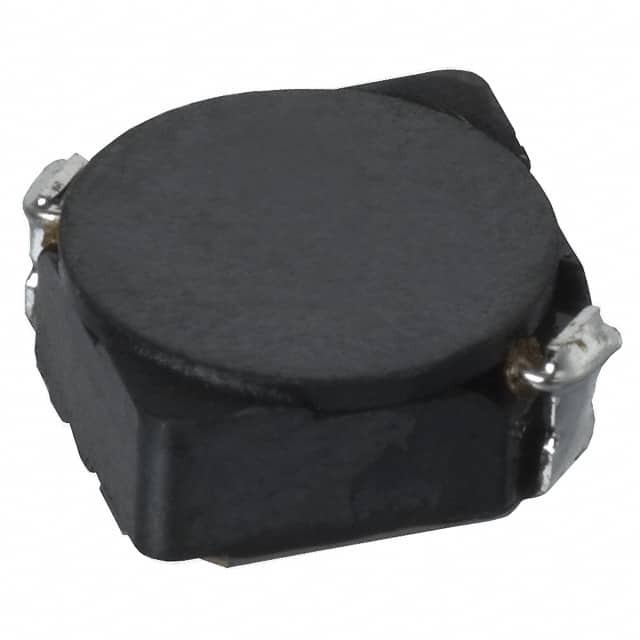

CDRH6D38NP-390NC

SKU: 25368

Manufacturer: Sumida

Inductor Power Shielded Drum Core 39uH 30% 100KHz Ferrite 1A 0.138Ohm DCR T/R

3310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Drum Core
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	39u
Tolerance	30%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	1
Maximum Saturation Current (A)	1
Maximum DC Resistance (Ohm)	0.138
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	100
Packing Method	Tape and Reel
Length (mm)	7
Terminal Form	Surface Mount
Depth (mm)	7
