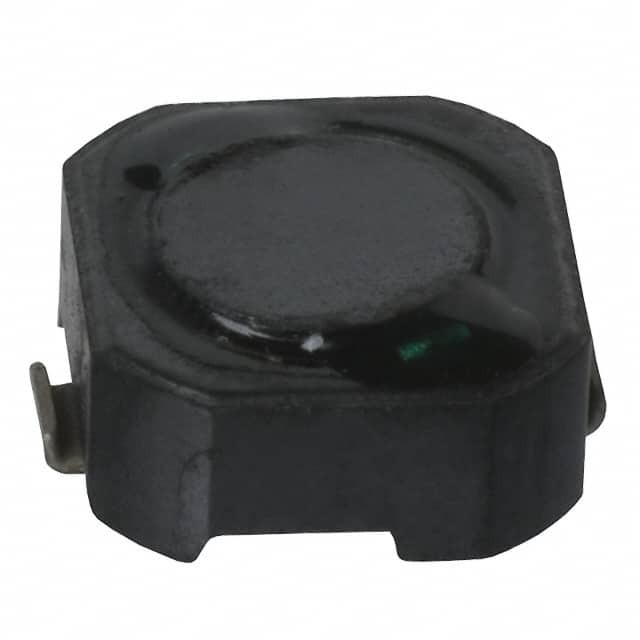

CDRH62BNP-2R9NC

SKU: 53880

Manufacturer: Sumida

Inductor Power Shielded Drum Core 2.9uH -20% to 40% 7.96MHz Ferrite 1.94A 0.068Ohm DCR T/R

2060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Power
Technology	Drum Core
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	2.9u
Inductance Decrease Percentage @ Isat (%)	75
Tolerance	-20% to 40%
Inductance Test Frequency (Hz)	7.96M
Maximum DC Current (A)	1.94
Maximum Saturation Current (A)	1.94
Maximum DC Resistance (Ohm)	0.068
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	100
Packing Method	Tape and Reel
Length (mm)	6.9
Terminal Form	Surface Mount
Depth (mm)	6.5
