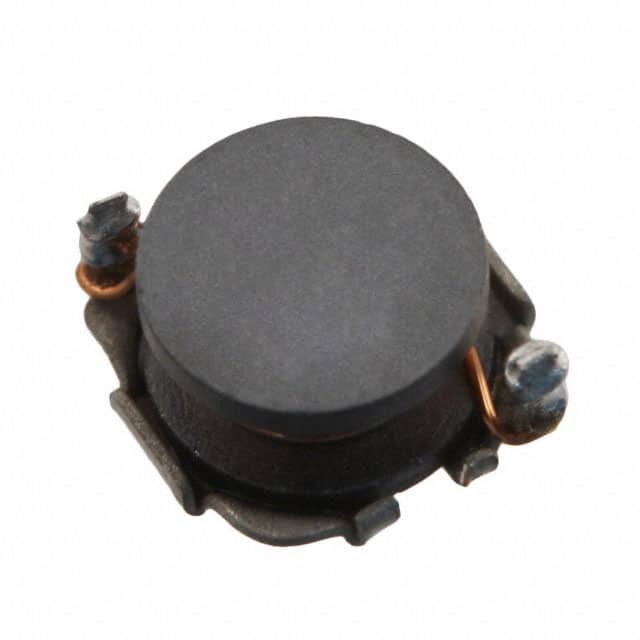

CDH53NP-100LC

SKU: 93763

Manufacturer: Sumida

Inductor Power Unshielded Drum Core 10uH 15% 1KHz Ferrite 1.23A 0.16Ohm DCR T/R

2030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Drum Core
Protection Style	Unshielded
Core Body Material	Ferrite
Inductance (H)	10u
Inductance Decrease Percentage @ Isat (%)	90
Tolerance	15%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	1.23
Maximum Saturation Current (A)	1.23
Maximum DC Resistance (Ohm)	0.16
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	100
Packing Method	Tape and Reel
Length (mm)	6
Terminal Form	Surface Mount
Depth (mm)	5.4
